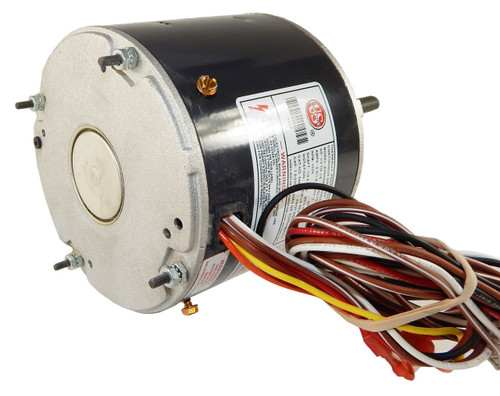

5464 Nidec | 1/3 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor
5464 Nidec | 1/3 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor
5464 Nidec | 1/3 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor
5464 Nidec | 1/3 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor
5464 Nidec | 1/3 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor
5464 Nidec | 1/3 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor

Nidec

5464 Nidec | 1/3 hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor

(No reviews) Write a Review
$210.45
$187.44
SKU 5464
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/3 HP
RPM 825
Type Permanent Split Capacitor
Amperage 1.2 Amps
Bearings Ball Bearings
Speeds 2-Speed
Insulation Class Class B
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1/3 hp 825 RPM 2-Speed 208-230V 1.9-1.2 amps
  • Shaft 1/2" x 5"
  • Rotation = Reversible
  • 5.6" Diameter
  • Motor case length 5.312"
  • Ball bearings
  • 7.5MFD 370V Capacitor REQUIRED (Our Part #7.5DV)
  • 4 holes in case for Rheem mounting
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Totally Enclosed Air Over Enclosure; Class B Insulation; 60C Ambient Temperature; 48" Leads, K055CLN1469012B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/3 HP
RPM 825
Type Permanent Split Capacitor
Amperage 1.2 Amps
Bearings Ball Bearings
Speeds 2-Speed
Insulation Class Class B
Duty Continuous Duty
!
