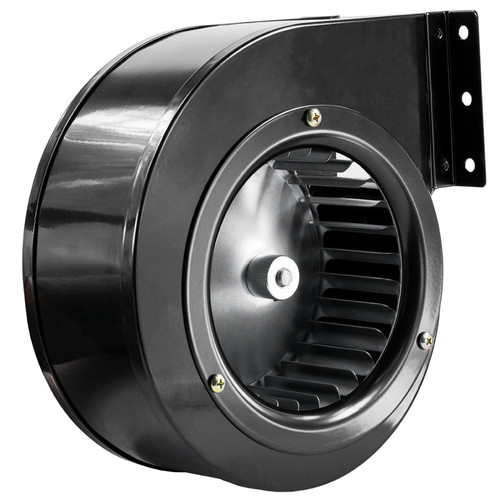

2C647 Dayton Direct OEM Interchange Replacement Blower

2C647 Dayton Direct OEM Interchange Replacement Blower

This replacement blower is a direct OEM aftermarket part designed to fit Dayton 2C647 models and compatible units. It is suitable for use in various indoor and outdoor wood stoves, boilers, and fireplaces, providing reliable airflow performance.

Key Specifications

• RPM: 1550
• Voltage: 115 Volts 60/50 Hz
• Amperage: 0.55 amps
• Bearings: Ball Bearings

Product Features & Fitment

Constructed with a painted steel housing and Class B insulation, this blower features a PSC style motor for energy-efficient operation by reducing amperage. It includes a pre-installed run capacitor and automatic overload protection. The blower is non-reversible, mounts in all positions, and has a maximum inlet temperature rating of 104°F. It comes with a short power cord and does not include an on/off switch.

This blower is a suggested replacement for Dayton models 2C647A, 2C647B, 2C647D, 2C647E, and motor #99080464. It is also compatible with Harmon Pellet Stove models P38, P45, P48, and P61. Installation should be performed by a certified technician, and power must be turned off before replacement.

Cross Reference

• the following models
• Same As Dayton 2C647A, 2C647B, 2C647D, 2C647E, 2C647
• Motor # 99080464 has also been found on this blower
• Blower also used on Harmon Pellet Stoves such as model P38, P45, P48, P61

Warranty

1 Year Manufacturer Warranty
