1128 Nidec | 1/2 hp 1075 RPM 1-Speed 460V; 5.6" Condenser Fan Motor

(No reviews) Write a Review
$523.25
$466.90
SKU 1128
Availability Subject to availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 1/2 HP
RPM 1075
Type Permanent Split Capacitor
Amperage 1.3 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1/2 hp 1075 RPM 1-Speed 460V 1.3 amps

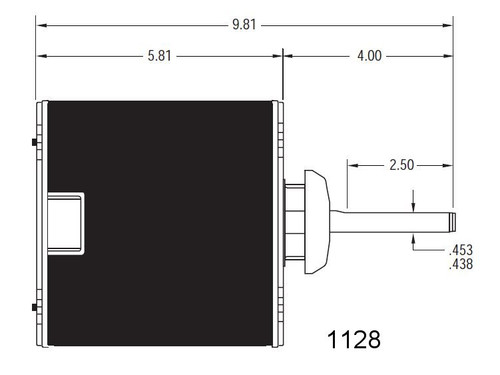

  • Shaft 2 1/2" x 1/2"
  • Rotation CW shaft end
  • 5.6" Diameter
  • Motor case length 5.81"
  • Terminal block connector for wires
  • Ball Bearings
  • Vertical shaft up
  • 10MFD 370V Capacitor REQUIRED (Our Part #10DV)
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Drip-Proof Air Over Enclosure; Class B Insulation; 40C Ambient Temperature. Application Lennox condenser fan motors. K055NRB1127011B, Suggested after market replacement for 27J0701, K55HXTDP-8454

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 1/2 HP
RPM 1075
Type Permanent Split Capacitor
Amperage 1.3 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
!
