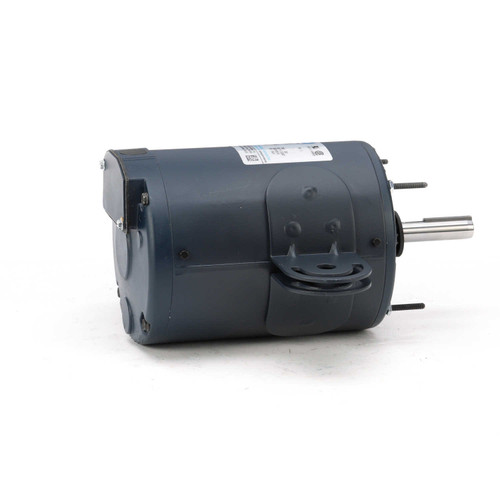

103722.00 Leeson | 1/2 hp 1075 RPM 115V 5/8" Dia. Shaft Pedestal Fan Motor
(No reviews)
Write a Review
Write a Review
Leeson
103722.00 Leeson | 1/2 hp 1075 RPM 115V 5/8" Dia. Shaft Pedestal Fan Motor
$414.00
$356.44
SKU
103722
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115V
Horsepower
1/2 HP
RPM
1075
Phase
Single Phase
Frame
48Y
Enclosure
TEAO
Hertz
60 Hz
Amperage
5.7 Amps
Bearings
Ball Bearings
Speeds
Single-Speed
Service Factor
1.0
Insulation Class
Class B
- 1/2 hp 1075 RPM, 5.7 amps, 115V 60hz.; Single phase.
- 5/8" Diameter Shaft; Rotation = Reversible
- Ball Bearings, Class B Insulation, Service Factor 1.0
- 10-32 mounting studs shaft end; Studs extend 1" on 5.14" bolt circle
- Automatic Overload Protection
- TEAO - Totally Enclosed Air Over
- UL & CSA recognized; single speed
48Y Frame; Permanent Split Capacitor; Steel Yoke Welded to Motor Frame; One Year Manufacture Warranty
A4P11NZ79A, 103722.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115V |
| Horsepower | 1/2 HP |
| RPM | 1075 |
| Phase | Single Phase |
| Frame | 48Y |
| Enclosure | TEAO |
| Hertz | 60 Hz |
| Amperage | 5.7 Amps |
| Bearings | Ball Bearings |
| Speeds | Single-Speed |
| Service Factor | 1.0 |
| Insulation Class | Class B |
