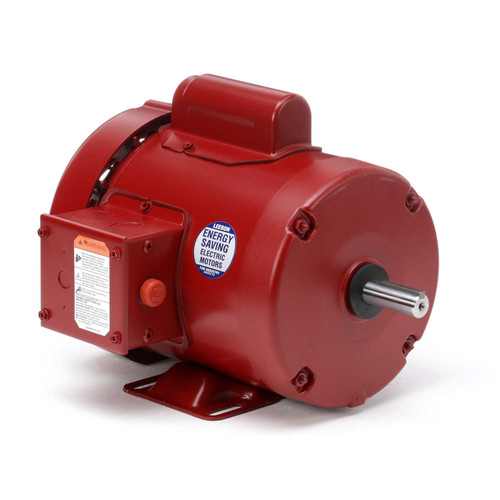

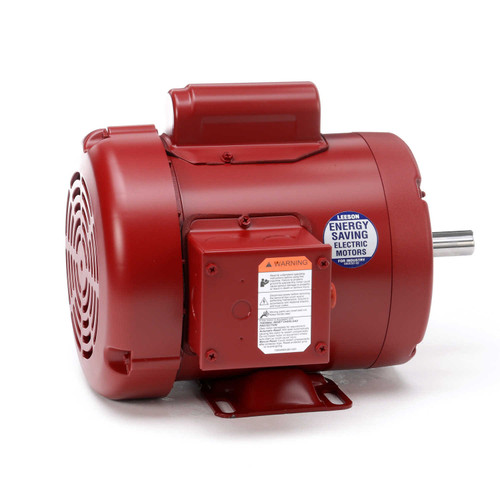

110086.00 Leeson | 1/2 hp 1725 RPM 56 Frame TEFC (Farm Duty) 115/208-230 volts

110086.00 Leeson | 1/2 hp 1725 RPM 56 Frame TEFC (Farm Duty) 115/208-230 Volts

This Leeson 1/2 horsepower motor is designed for demanding industrial and agricultural applications, replacing standard motors with enhanced durability and performance. Ideal for woodworking machines and other equipment exposed to dust, dirt, and oil, it delivers reliable operation in harsh environments.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1725
• Voltage: 115/208-230 volts, 60 Hz
• Amperage: 8.8/4.4 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

This farm duty motor features a flat rigid base mount with a standard NEMA 56 frame and 3" x 5" mounting hole pattern for straightforward installation. It includes manual overload protection and a capacitor start design for high starting torque. Additional enhancements include double sealed bearings with Exxon grease rated for -20°F to +350°F, a gasketed junction box and capacitor covers, and a rubber boot over the reset button for extra protection against environmental contaminants.
