D12CP1P49 Nidec | 1/2 hp 3600 RPM 48 Frame 115/230V Open Drip Nidec Electric Motor

D12CP1P49 Nidec | 1/2 hp 3600 RPM 48 Frame 115/230V Open Drip Nidec Electric Motor

SKU:
D12CP1P49
Availability:
Subject to availability
Weight:
19.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $223.00
Now: $198.99
Adding to cart… The item has been added
  • 1/2 hp 3600 RPM, 5.0/2.5 amps 115/230 Volts 60hz. Single Phase Motor
  • NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 7/8"
  • Capacitor Start
  • Service Factor: 1.25, Overload protection = None
  • Reversible, Resilient Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

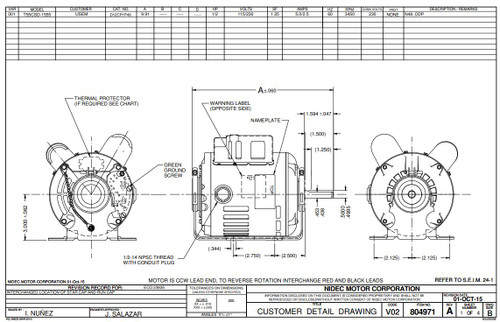

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof

T055CSD1555012B

!
