Fasco D189 Motor | 1/20 hp 1500 RPM CCW 3.3" Diameter 230 Volts

Fasco D189 Motor | 1/20 hp 1500 RPM CCW 3.3" Diameter 230 Volts

The Fasco D189 is a compact shaded pole motor designed for air-over applications, ideal for replacing motors in HVAC systems and industrial equipment. It is compatible with Fasco model 71637185 and Dayton 38N551.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1500
• Voltage: 230 Volts
• Amperage: 0.9 amps
• Enclosure: Open Ventilation
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 5/16" diameter x 2 1/4" length
• Rotation: CCW Shaft End
• Bearings: Sleeve Bearings

Product Features & Fitment

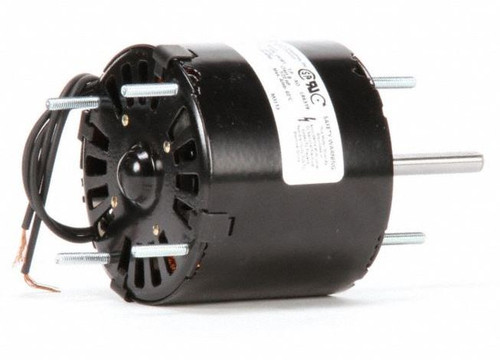

This motor features a stud mount with a 2.85" bolt circle and includes four studs on each end for secure installation. The motor length excluding the shaft measures 2 7/8", making it suitable for compact mounting spaces. Its shaded pole design ensures reliable operation in air-over cooling environments.

Warranty

1 Year Manufacturer Warranty
