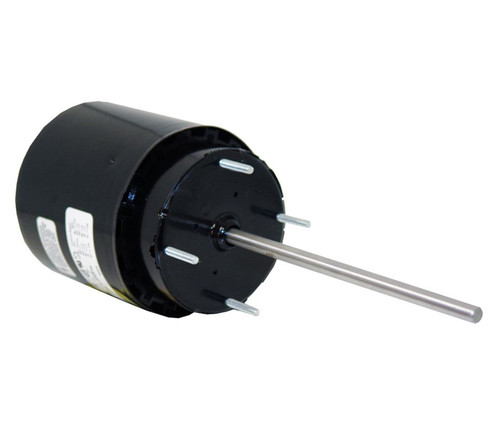

Fasco D215 Motor | 1/20 hp 3000 RPM CCW 115/230 Volts

Fasco D215 Motor | 1/20 hp 3000 RPM CCW 115/230 Volts

The Fasco D215 is a compact, shaded pole motor designed for HVAC and industrial applications requiring reliable, low-horsepower performance. It serves as a direct replacement for motors with similar specifications, including the Dayton 38N522.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 3000
• Voltage: 115/230 Volts, 60 Hz
• Amperage: 1.7/0.8 Amps
• Enclosure: Totally Enclosed, Self Cooled
• Shaft Dimensions: 5/16" diameter x 6 1/2" length
• Rotation: Counterclockwise Shaft End (CCWSE)
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and four mounting studs at the shaft end for secure installation. The motor length, excluding the shaft, measures 4 5/8". Its shaded pole design ensures quiet operation and durability in enclosed environments.

Warranty

1 Year Manufacturer Warranty
