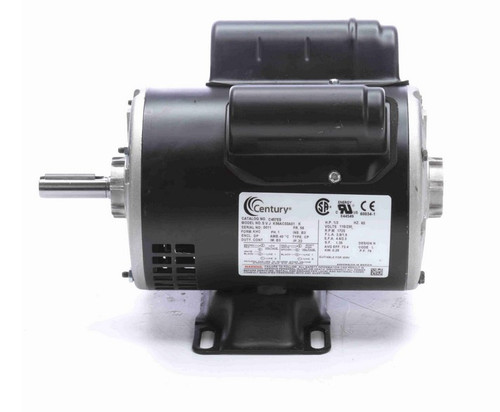

- 1/3 hp 1800 RPM, 3.8/1.9 amps 115/230 Volts 60hz. Single Phase
- NEMA 56 frame, Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.35, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motors are for use in situations not having special requirements. This is a single phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip Proof. C457ES
