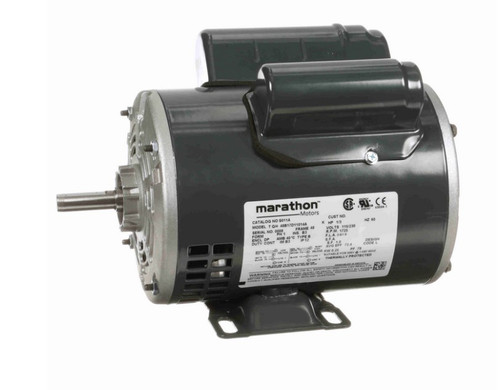

- 1/3 hp 1800 RPM, 3.8/1.9 amps 115/230 Volts 60hz. Capacitor Start/Run Motor
- NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 1/2"
- Service Factor: 1.0, Overload protection = Auto
- Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof, 048B17D11014
