sale
Leeson

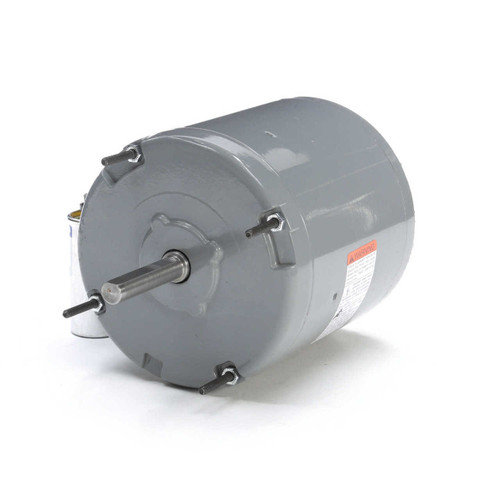

101341.00 Leeson | 1/4 hp 1625 RPM 48YJ TENV 115/230V Hatchery Fan Motor
(No reviews)
Write a Review
Write a Review
Leeson
101341.00 Leeson | 1/4 hp 1625 RPM 48YJ TENV 115/230V Hatchery Fan Motor
$333.50
$282.33
SKU
101341.00
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/230V
Horsepower
1/4 HP
RPM
1625
Enclosure
TENV
Hertz
60 Hz
Type
Permanent Split Capacitor
Amperage
2.8/1.4 Amps
Service Factor
1.0
Insulation Class
Class B
- 1/4 hp 1625 RPM, 2.8/1.4 amps, 115/230V 60hz.
- Shaft: 1/2" by 2-1/4" with full length flat
- TEAO
- Class B Insulation; Service Factor 1.0
- Automatic Overload Protection
- 1" long extended through bolts for fan shroud
- 15 MFD Capacitor Included
- One Year Manufacture Warranty
Hatchery & Incubator Fan Motor permanent split capacitor motor for fan on shaft incubator fans. Band mounted, with 1" long extended through bolts for fan shroud. Connections in end of motor through 1-1/2"-14 NPT tap. UL Listed thermal overload. 15 MFD, 370V run capacitor shipped loose with motor.
Model A4P17NZ24F; 101341.00
