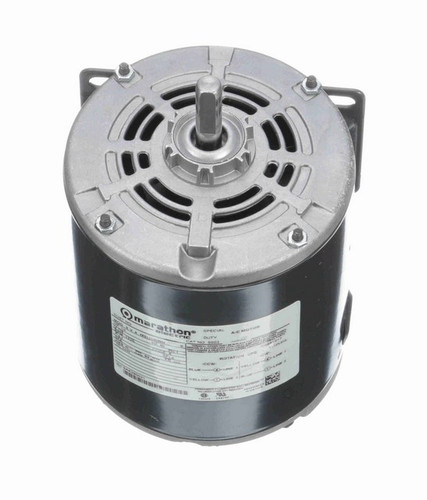

S003 Marathon 1/4 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor

SKU:
S003
Weight:
12.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $178.50
Now: $154.80
Adding to cart… The item has been added
  • 1/4 hp 1800 RPM, 5.7 amps 115 Volts 60hz. Split Phase Motor
  • NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 1/2"
  • Service Factor: 1.0, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof, 048S17D2089
