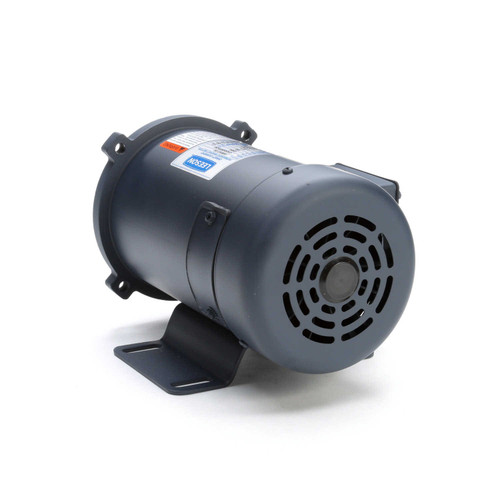

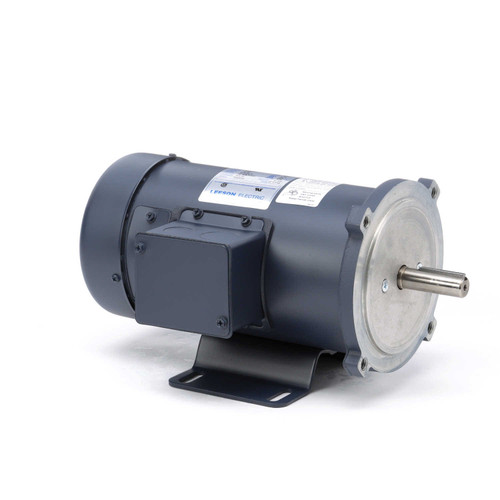

- 1/4 hp 1800 RPM 180 Volts DC 56C Frame
- NEMA 56C Frame 5/8" Diameter Keyed shaft
- 1.4 amps 180 Volts DC
- 56C Face with Removable Bolt On Base
- TEFC = Totally Enclosed Fan cooled
- Permanent magnet DC motor
- UL and CSA Listed; Meets NEMA MG1 standards
- Class F Insulation
- 1 Year Manufacture Warranty
High voltage permanent magnet DC Motors are typically used with an SCR controller in applications requiring adjustable speed and constant torque throughout the speed range. They are also widely used in applications requiring dynamic braking or adjustable speed/reversing Capabilities. Reversible rotation with simple 2-lead connection. Note: If base is removed, do not reinstall the bolts without washers to compensate for the base thickness. Can use with Leeson speed control 174307, 174308.
C42D17FK3C, 098003.00
