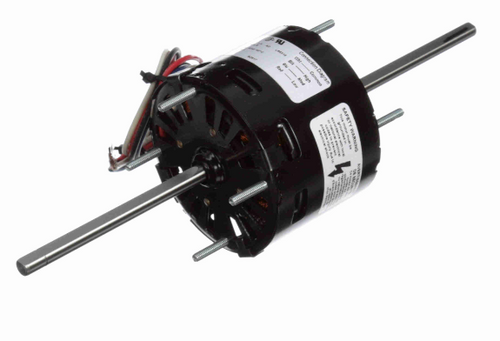

Fasco D128 Motor | 1/40 hp 1500 RPM 3-Speed 3.3" Diameter 115 Volts

Fasco D128 Motor | 1/40 hp 1500 RPM 3-Speed 3.3" Diameter 115 Volts

The Fasco D128 is a versatile shaded pole motor designed for air-over applications, commonly used as a replacement motor in HVAC systems and industrial equipment. It features a 3-speed operation and is suitable for installations requiring reliable, low-horsepower performance.

Key Specifications

• Horsepower: 1/40 hp
• RPM: 1500
• Voltage: 115 Volts, 60 Hz
• Amperage: 1.3 / 0.9 / 0.7 Amps
• Enclosure: Open Ventilation
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 4" length x 5/16" diameter, double shaft with flat extending along shaft length
• Rotation: CCWLE (Counterclockwise Leading Edge)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a stud mount with a bolt circle diameter of 2.85" and includes four mounting studs on each end for secure installation. The motor length excluding shafts measures 2 1/2". The double shaft design allows for shaft modification by cutting to achieve the desired rotation. For single-speed operation, simply use the required speed wire and tape off the unused wires. Wiring color codes are White (Common), Black (High), Blue (Medium), and Red (Low).

Warranty

1 Year Manufacturer Warranty
