sale
Leeson

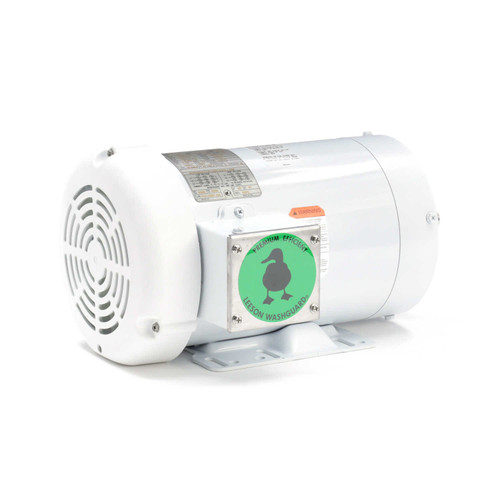

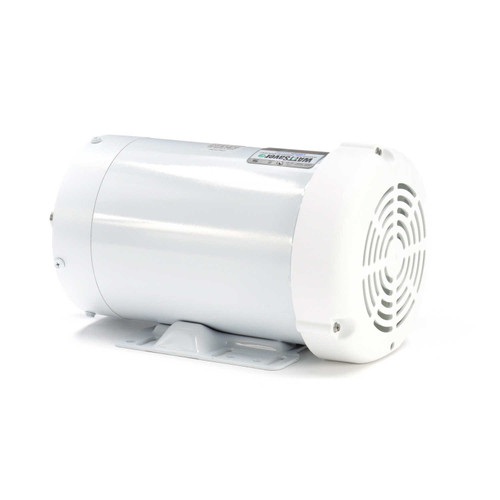

121871.00 Leeson | 1.5 hp 1800 RPM 145TC Frame TEFC 230/460V Wash Down Duty
(No reviews)
Write a Review
Write a Review
Leeson
121871.00 Leeson | 1.5 hp 1800 RPM 145TC Frame TEFC 230/460V Wash Down Duty
$886.65
$751.30
SKU
121871.00
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
1-1/2 HP
RPM
1800
Phase
Three Phase
Frame
145TC
Enclosure
TEFC
Hertz
60 Hz
Amperage
4.8/2.4 Amps
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 1.5 hp 1800 RPM, 4.8/2.4 amps 230/460 Volts 60hz. Three Phase Motor
- NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
- Leeson Washguard Motor -Rigid Base
- Service Factor: 1.15 - overload protection = None - Class F Insulation
- TEFC = Totally Enclosed Fan Cooled
- 1 Year Manufacture Warranty
Leeson's original moisture-shedding "duck" motor. Durable Rust Oleum White epoxy paint. Stainless steel shaft, conduit box cover, nameplate and fan guard. Special gaskets, slingers and seals. Four endshield drains. Moisture resistant interior components. IRIS insulation system.
C145T17WK31A, 121871.00, Replaces G121540.00
Replaces Marathon N607, N607A, 145TTVR5326, 145TTWR16026
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 1-1/2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 145TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 4.8/2.4 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
