- 1.5 hp 1800 RPM, 13.4/6.7 amps 115/230 Volts 60hz. Single Phase Motor
- NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Capacitor Start
- Service Factor: 1.15, Overload protection = None
- Reversible, Resilient Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty

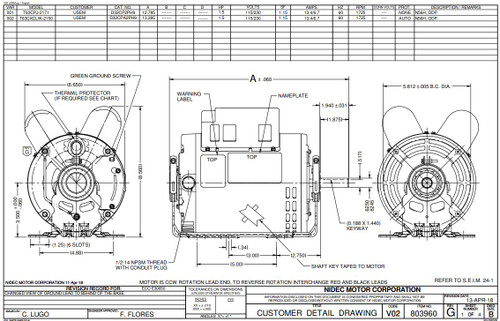

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof
T063CPJ2171012B
