D32CPA2PH9 Nidec | 1.5 hp 1800 RPM 56H Frame 115/230V Open Drip Nidec Electric Motor
D32CPA2PH9 Nidec | 1.5 hp 1800 RPM 56H Frame 115/230V Open Drip Nidec Electric Motor
D32CPA2PH9 Nidec | 1.5 hp 1800 RPM 56H Frame 115/230V Open Drip Nidec Electric Motor
D32CPA2PH9 Nidec | 1.5 hp 1800 RPM 56H Frame 115/230V Open Drip Nidec Electric Motor

Nidec

D32CPA2PH9 Nidec | 1.5 hp 1800 RPM 56H Frame 115/230V Open Drip Nidec Electric Motor

(No reviews) Write a Review
$888.95
$719.95
SKU D32CPA2PH9
Availability Subject to availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 1-1/2 HP
RPM 1800
Phase Single Phase
Frame 56H
Enclosure ODP
Hertz 60 Hz
Amperage 13.4/6.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1.5 hp 1800 RPM, 13.4/6.7 amps 115/230 Volts 60hz. Single Phase Motor
  • NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Capacitor Start
  • Service Factor: 1.15, Overload protection = Auto
  • Reversible, Resilient Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

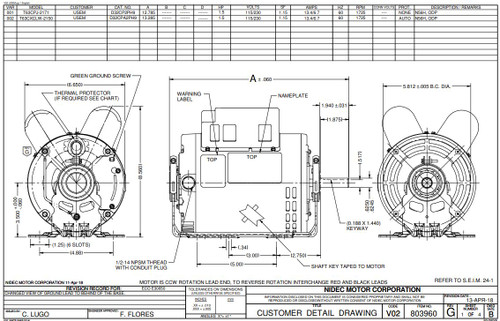

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof

T063CLW2150012B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 1-1/2 HP
RPM 1800
Phase Single Phase
Frame 56H
Enclosure ODP
Hertz 60 Hz
Amperage 13.4/6.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
!
