- 1.5 hp 3450 RPM, 17.0/8.5 amps, 115/208-230V 60 hz.; Reversible
- NEMA 56Z Frame Shaft 5/8" x 1 7/8"
- .75" deep tapped hole in shaft with 1/4" - 20 threads
- TEAO-Totally Enclosed Air Over; Service Factor = 1.0
- Class B Insulation
- One Year Manufacture Warranty
Totally Enclosed Air Over Motors, dust tight, suitable for shaft mounted fans or belt driven fans. Capacitor start designs. Designed to be used within the airflow of the driven fan, these motors offer protection from the environment and are finished in epoxy enamel to resist corrosion in tough atmospheres. Lubricated with high temperature Exxon POLYREX® EM lubricant. Grounding provisions. Fully gasketed.

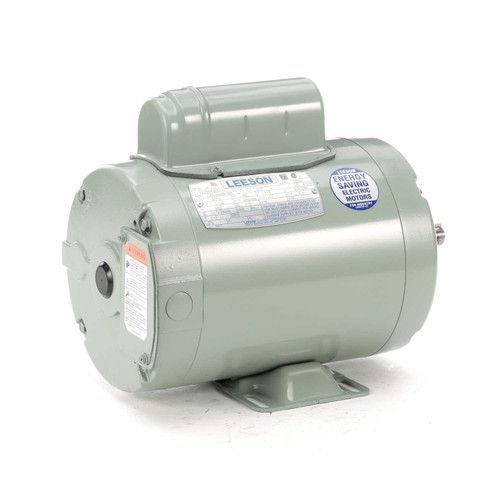

Model C6C34NB19H; 111949.00
