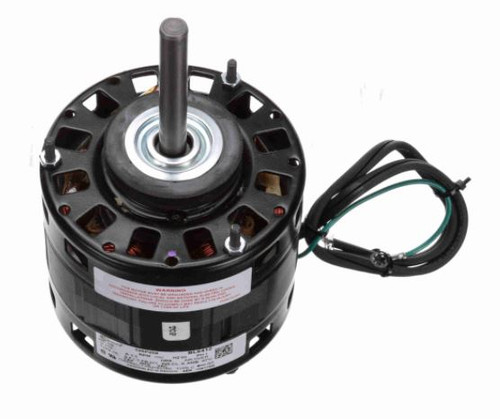

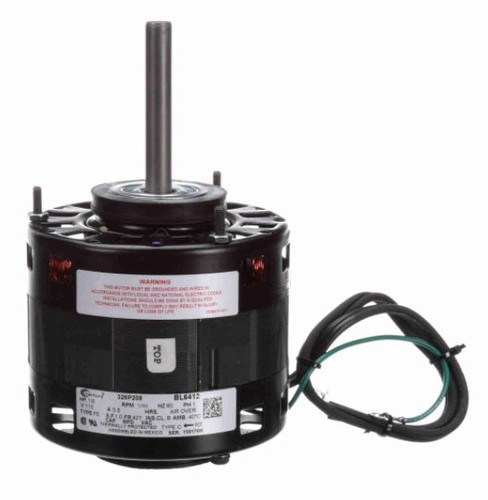

BL6412 Century 1/6 hp 1050 RPM CW 5" Diameter 115V Direct Drive Furnace Motor Century # BL6412

BL6412 Century 1/6 hp 1050 RPM CW 5" Diameter 115V Direct Drive Furnace Motor

The BL6412 is a direct drive furnace motor designed to replace Fasco models D156, 7151-0127, and 326P208. It is ideal for HVAC applications requiring reliable, efficient motor performance with clockwise shaft rotation.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1050
• Voltage: 115V, 60Hz
• Amperage: 5.5 amps
• Frame / Diameter: 5"
• Shaft Dimensions: 1/2" diameter x 3 7/8" length
• Rotation: Clockwise (CWSE)
• Bearings: Sleeve bearings
• Enclosure: Open ventilation, air over

Product Features & Fitment

This shaded pole motor features a resilient ring mount and can be installed using a belly band or stud mount with a 4.62" bolt circle. The motor length excluding the shaft measures 3 7/8". Compatible belly band brackets include the Torsion Flex Bracket (#FM50) and the Welded 3-Ring Bracket (#2MEV2).

Cross Reference

• Fasco D156, 7151-0127, 326P208

Warranty

1 Year Manufacturer Warranty
