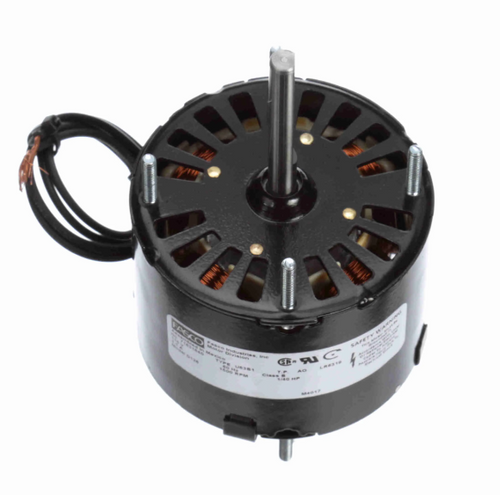

- 1/70 hp 1500 RPM, .7 Amps, 115 Volts 60 hz.
- Shaft: 1/4" x 2 1/4"
- Rotation = CCW Shaft End
- Semi Enclosed
- Stud Mount - Bolt Circle - 2.85"
- Motor Length Less Shaft = 2 1/8"
- Sleeve Bearings
- 4 studs each end for mounting
- 1 Year Manufacture Warranty
Shaded Pole, Open Ventilation, Air Over.
Mounting studs can be cut off if not needed. Shaft can also be shortened if necessary.
Shaft bushing is also available, 1/4" to 5/16" (part # KIT240)
Motor is common to bath fans, humidifier and dehumidifiers, to name a few applications.
Suggested replacement for:
Dayton 3M539
