- 1/8 hp 825 RPM, .9 amps, 230 Volts 60hz.
- Shaft: 1/2" x 6 1/2" Rotation = Reversible
- Bolt Circle - 5.2"
- Belly Band Mount or Base Mount
- Required 5 MFD 370V Capacitor Included
- Sleeve bearings
- Motor Length Less Shaft = 4"
- 1 Year Manufacture Warranty.

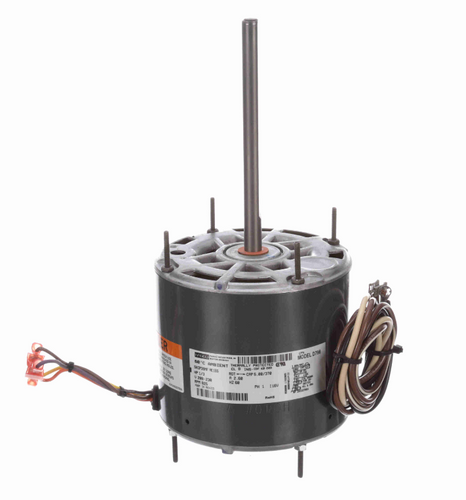

Application Information: Condenser Fan (Air Conditioner). Permanent Split Capacitor motor, Totally Enclosed-air over. Shaft up/down or Horizontal mount. All angle mount bearings, CSA certified, UL recognized, 60 degrees ambient temperature rating. Use rain shield when necessary. Has 4 drilled and tapped holes in shell.
