sale
Marathon

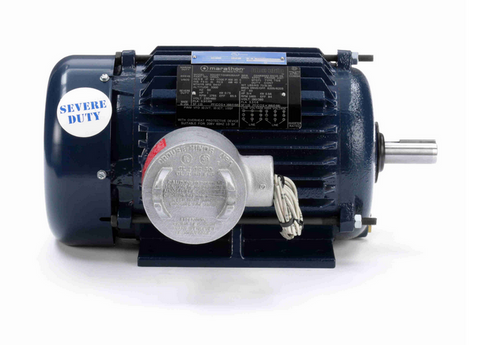

U001A Marathon 1 hp 1800 RPM 3-Phase 145T Frame TEFC (rigid base) 230/460V Marathon Motor
(No reviews)
Write a Review
Write a Review
Marathon
U001A Marathon 1 hp 1800 RPM 3-Phase 145T Frame TEFC (rigid base) 230/460V Marathon Motor
$787.41
$673.79
SKU
U001A
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
1 HP
RPM
1800
Phase
Three Phase
Frame
145T
Enclosure
TEFC
Hertz
60 Hz
Amperage
3.3/1.7 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 1 hp 1800 RPM, 3.3/1.7 amps 230/460 Volts 60 Hz. 3-Phase
- NEMA 145T cast iron frame, Keyed Shaft 7/8" Diameter x 2 1/4"
- Service Factor: 1.15, Overload protection = Thermostat
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
Explosion-Proof three phase cast iron electric motor. EXP PROOF CL I GR D CL II GR F&G T3B. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 43TTGN6526
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 1 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 145T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 3.3/1.7 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
