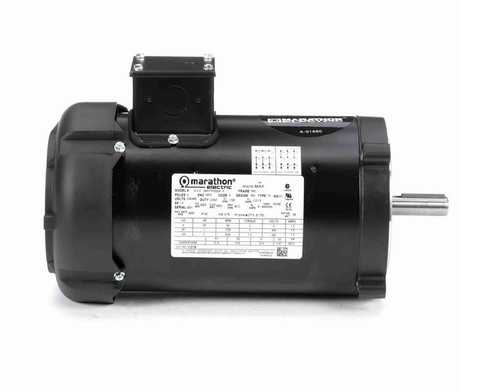

Y378 Marathon 1 hp 1800 RPM 3-Phase 56C Frame TEFC (no base) 230/460V Marathon Motor

Y378 Marathon 1 hp 1800 RPM 3-Phase 56C Frame TEFC (no base) 230/460V Marathon Motor

This Marathon 1 horsepower, 1800 RPM, three-phase electric motor is designed for industrial applications requiring reliable, inverter-duty performance. It replaces standard motors with a NEMA 56C frame and is ideal for driving pumps, gear heads, and other machinery with a C-face mount.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 3.2/1.6 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56C
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

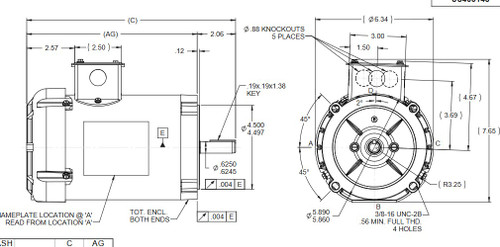

This motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing direct mounting of pumps or gear heads. The shaft includes a keyway for secure coupling. It comes without a base and includes a wiring diagram on the nameplate for straightforward installation. The motor is rated for inverter (vector) duty with a 20:1 constant torque capability.

Warranty

1 Year Manufacturer Warranty
