S037 Marathon 1 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
S037 Marathon 1 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
S037 Marathon 1 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
S037 Marathon 1 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
S037 Marathon 1 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
S037 Marathon 1 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
S037 Marathon 1 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
S037 Marathon 1 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

Marathon

S037 Marathon 1 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

(No reviews) Write a Review
$555.22
$483.69
SKU S037
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 13.6/6.8 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 hp 1800 RPM, 13.6/6.8 amps 115/230 Volts 60hz. Capacitor Start Motor

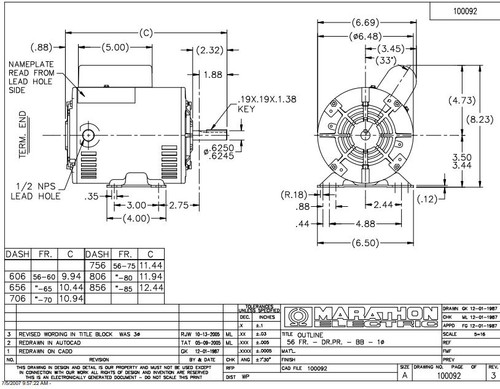

  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof, 056C17D5319

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 13.6/6.8 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Rigid Base
!
