- 1 hp 3600 RPM, 3.0/1.5 amps 208-230/460 Volts 60hz. Three Phase Motor
- 56J Frame - Face Mount, Round Body-No Base
- 5/8" diameter threaded shaft
- Service Factor: 1.15 - overload protection = None
- Class B Insulation
- 1 Year Manufacture Warranty

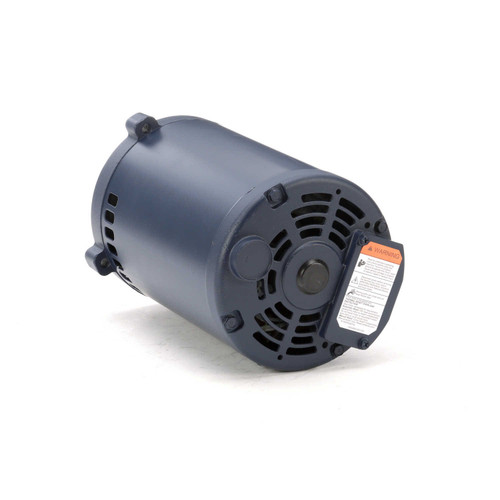

Three phase 56J frame pump motor. Stainless steel shaft. sealed ball bearings. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate.
