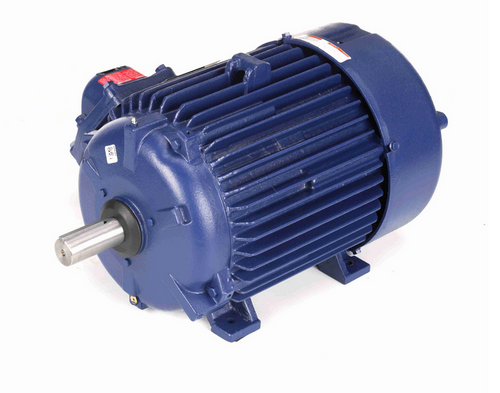

E501 Marathon 10 hp 1200 RPM 3-Phase 256T Frame TEFC (rigid base) 230/460V Marathon Motor
(No reviews)
Write a Review
Write a Review
Marathon
E501 Marathon 10 hp 1200 RPM 3-Phase 256T Frame TEFC (rigid base) 230/460V Marathon Motor
$2,487.91
$2,278.95
SKU
E501
Availability
Subject to Availability
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
10 HP
RPM
1200
Phase
Three Phase
Frame
256T
Enclosure
TEFC
Hertz
60 Hz
Amperage
26.2/13.1 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 10 hp 1200 RPM, 26.2/13.1 amps 230/460 Volts 60 Hz. 3-Phase
- NEMA 256T cast iron frame, Keyed Shaft 1 5/8" Diameter x 4"
- Service Factor: 1.15, Overload protection = Thermostat
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
Explosion-Proof three phase cast iron electric motor. EXP PROOF CL I GR C&D CL II GR F&G T3B. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 256TTGN6576
MOTOR MAY HAVE "A" SUFFIX - SAME MOTOR
