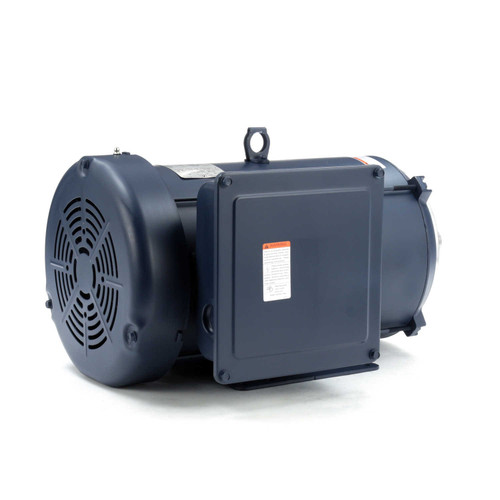

140695.00 Leeson | 10 hp 3600 RPM 215TC Frame TEFC C-Face- Rigid Base 208-230V

140695.00 Leeson 10 hp 3600 RPM 215TC Frame TEFC C-Face Rigid Base Motor

This Leeson 10 horsepower, 3600 RPM single-phase electric motor is designed for general-purpose industrial applications. It features a rigid base and C-face mount, making it suitable for replacing or installing pumps, gear heads, and other machinery requiring a keyed shaft and secure mounting.

Key Specifications

• Horsepower: 10 hp
• RPM: 3600
• Voltage: 208-230 V
• Amperage: 41.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 215TC
• Shaft Dimensions: 1 3/8" diameter x 3 3/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

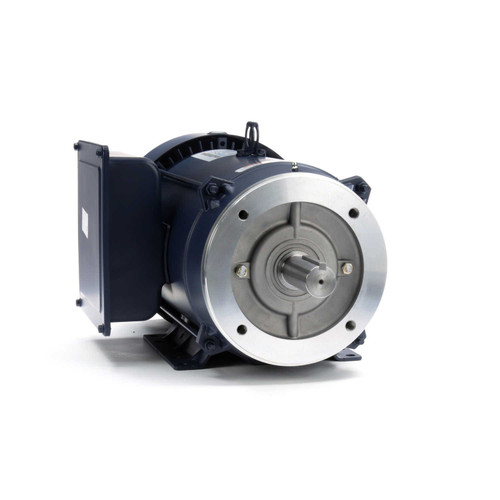

The motor includes a rigid base mount with a C-face that has four threaded bolt holes spaced 7 1/4" on center across the shaft, allowing for easy attachment of pumps or gear heads. The shaft features a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
