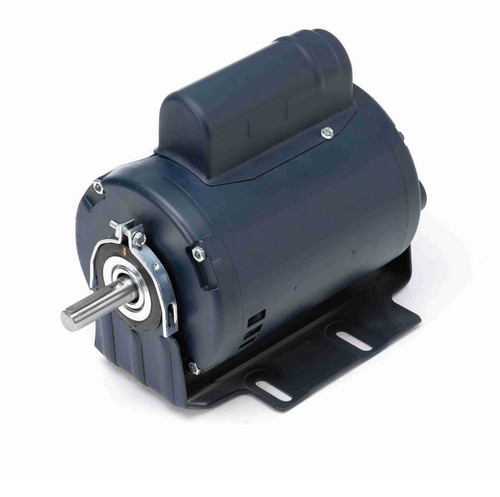

102965.00 Leeson 1/2 hp 1800 RPM 277V 56 Frame (Resilient Base) ODP 1-Phase Fan Motor

102965.00 Leeson 1/2 hp 1800 RPM 277V 56 Frame (Resilient Base) ODP 1-Phase Fan Motor

This Leeson 1/2 horsepower, 1800 RPM single-phase motor is designed for general-purpose applications, primarily used to replace or service fan and blower systems. It features a resilient base and an open drip proof (ODP) enclosure suitable for moderate starting torque requirements.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 277 V
• Amperage: 3.7 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a capacitor start for reliable single-phase operation and features a keyed shaft for secure coupling. It is mounted on a resilient base to reduce vibration and noise during operation. Wiring diagrams are provided on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
