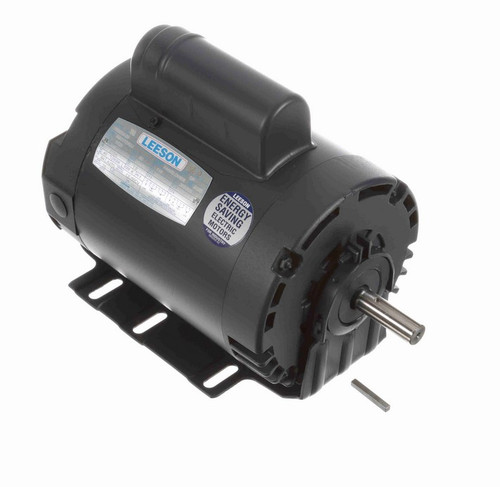

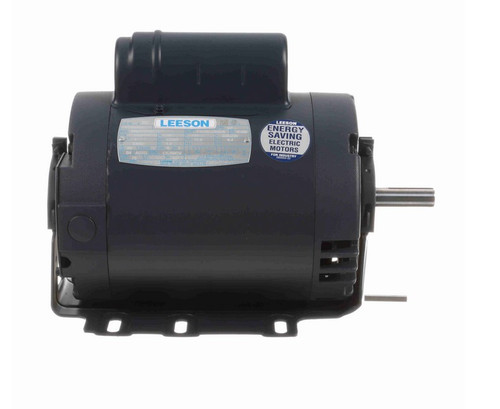

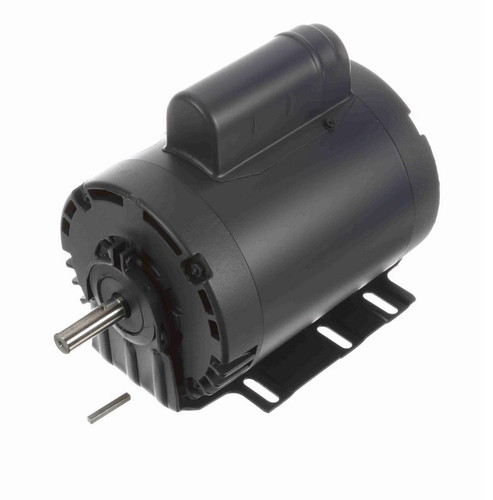

110054.00 Leeson 1 hp 1800 RPM 115/208-230V 56H Frame (Resilient Base) ODP 1-Phase Fan Motor
(No reviews)
Write a Review
Write a Review
Leeson
110054.00 Leeson 1 hp 1800 RPM 115/208-230V 56H Frame (Resilient Base) ODP 1-Phase Fan Motor
$656.65
$556.03
SKU
110054
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
115/208/230V
Horsepower
1 HP
RPM
1800
Phase
Single Phase
Frame
56H
Enclosure
ODP
Hertz
60 Hz
Amperage
6.4 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class B
- 1 hp 1800 RPM, 12.8/7.0-6.4 amps 115/208-230 Volts 60 Hz. Capacitor Start 1-Phase Motor
- NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0 Overload Protection = Auto
- Resilient Base, Reversible, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor having moderate starting torque generally used for fan and blower applications. Wiring diagram on motor name plate. ODP = Open Drip Proof. 110054.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 115/208/230V |
| Horsepower | 1 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56H |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 6.4 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class B |
