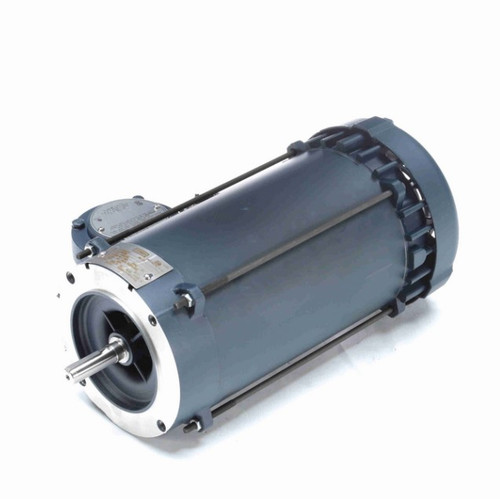

119431.00 Leeson 2 hp 3600 RPM 230/460V 56C Frame Explosion-Proof (No Base) 3-Phase TEFC Motor

119431.00 Leeson 2 hp 3600 RPM 230/460V 56C Frame Explosion-Proof (No Base) 3-Phase TEFC Motor

This Leeson motor is a 2 horsepower, 3-phase, explosion-proof motor designed for hazardous environments. It features a totally enclosed fan-cooled (TEFC) design and is suitable for applications requiring reliable, reversible operation without a base.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 5.0/2.5 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball bearings, Class B insulation

Product Features & Fitment

This motor is explosion-proof and rated for Division 1 hazardous locations, Class I Groups C and D, and Class II Groups F and G, with a T3C temperature rating. It includes a C-face mount with bolt holes spaced 3 3/4" on center across the shaft. The motor does not come with a base and features overload protection with an automatic reset. Wiring diagrams are provided on the motor nameplate for ease of installation.

Warranty

1 Year Manufacturer Warranty
