sale
Leeson

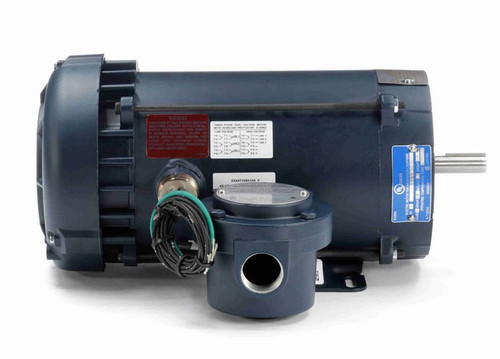

119439.00 Leeson 1 1/2 hp 3600 RPM 208-230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
(No reviews)
Write a Review
Write a Review
Leeson
119439.00 Leeson 1 1/2 hp 3600 RPM 208-230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
$1,224.75
$1,037.99
SKU
119439
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
1/2 HP
RPM
3600
Phase
Three Phase
Frame
56C
Enclosure
TEFC
Hertz
60 Hz
Amperage
4.0/2.0 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class B
Mounting
Rigid Base
- 1 1/2 hp 3600 RPM,4.2-4.0/2.0 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0, Overload Protection = Auto
- Rigid Base, Reversible, Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty
Explosion-Proof motor for use in hazardous environments with a C-face mount. DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119439.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 1/2 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 4.0/2.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
