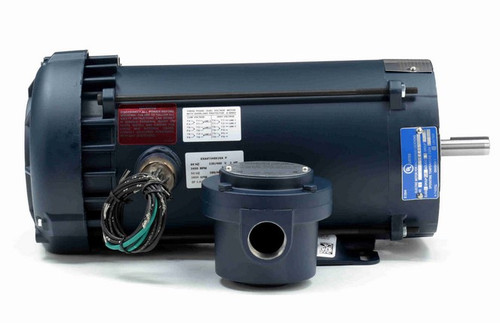

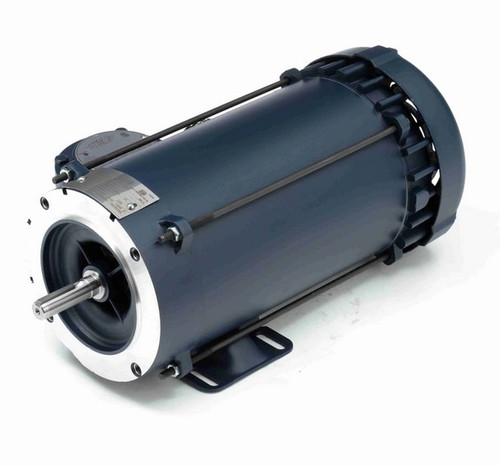

119442.00 Leeson 2 hp 3600 RPM 230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor

SKU:
119442
Weight:
67.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $1,097.00
Now: $929.70
Adding to cart… The item has been added
  • 2 hp 3600 RPM, 5.0/2.5 amps 230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload Protection = Auto
  • Rigid Base, Reversible, Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

Explosion-Proof motor for use in hazardous environments with a C-face mount. DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119442.00
