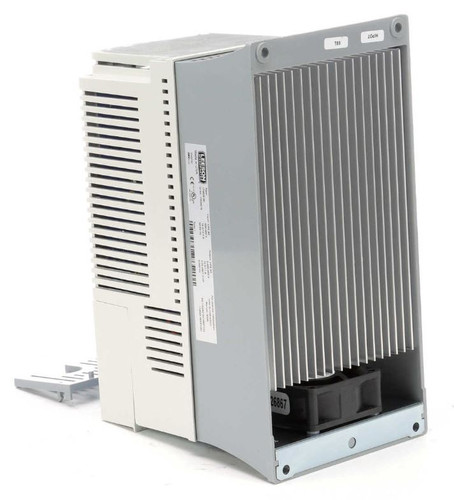

SM2 Series Flux Vector Series AC Inverter
- 10hp, 480-590V; Max amps 11.0
- Three Phase Input/Output Only
- Designed to be used with vector duty rated AC motors
- Typical applications would include: food processing, machinery, material handling and HVAC systems
- Enclosure: NEMA 1, IP31, -10 to 55C degrees, 2.5% derate per degree above 40C
- NEMA 1 = General purpose enclosures for indoor use. Protects against light dust, is not dust-tight. Primarily prevents accidental contact with the electrical components.
Modes of Operation:
Open loop flux vector (speed or torque)
V/Hz (constant or variable)
Enhanced V/Hz with auto-tuning
Easy to Use Keypad & Display
6 Button Interface: Start, Stop, Forward/Reverse, Scroll Up/Down, Enter/Mode
Vivid Illumination
4 digit LED Display
Easy to read from a distance
Movable decimal point
Weight: 7-lbs
Dimensions: 9.83 x 5.12 x 6.3 (inches)
Replaces Leeson 174553.00 VFD Drive
Specifications are subject to change without notice
