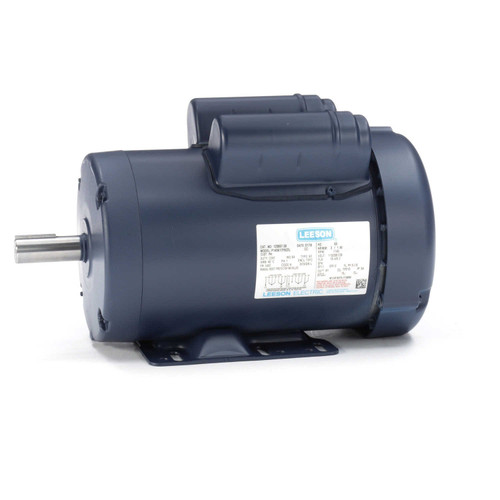

120867.00 Leeson | 2 hp 1725 RPM 145T Frame TEFC 115/208-230 Volts
(No reviews)
Write a Review
Write a Review
Leeson
120867.00 Leeson | 2 hp 1725 RPM 145T Frame TEFC 115/208-230 Volts
$1,154.60
$978.77
SKU
120867
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
2 HP
RPM
1725
Phase
Single Phase
Frame
145T
Enclosure
TEFC
Hertz
60 Hz
Amperage
18.4/9.2 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class B
Mounting
Rigid Base
- 2 hp 1725 RPM, 18.4/9.2 amps 115/208-230 Volts 60hz. single Phase Motor
- NEMA 145T Frame Keyed Shaft 7/8" Diameter x 2 1/4"
- Service Factor: 1.0 - overload protection = Manual
- Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
P145K17FB22L, 120867.00
Replaces Marathon I702, 145TBFR5336
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 2 HP |
| RPM | 1725 |
| Phase | Single Phase |
| Frame | 145T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 18.4/9.2 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
