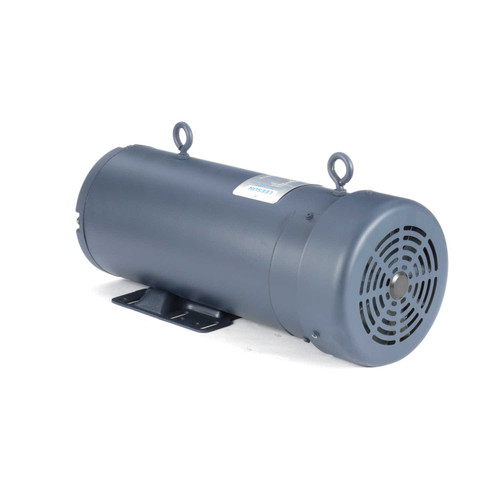

128010.00 Leeson | 2 hp 1800 RPM 180 Volts DC 145TC Frame TEFC
This 2 hp, 1800 RPM permanent magnet DC motor operates at 180 Volts DC and is designed for applications requiring adjustable speed and constant torque. It replaces Marathon Z616 and 145TEFR5327 models and is commonly used with SCR controllers for dynamic braking and reversible speed control.
Key Specifications
- Horsepower: 2 hp
- RPM: 1800
- Voltage: 180 Volts DC
- Amperage: 9.6 amps
- Enclosure: TEFC (Totally Enclosed Fan Cooled)

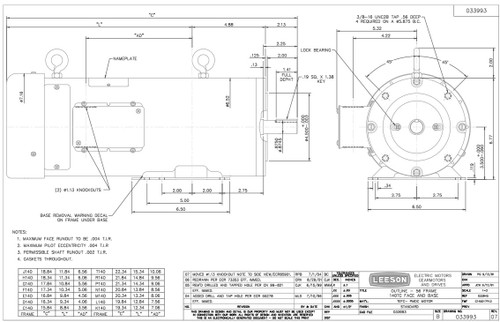

- Frame / Diameter: NEMA 145TC Frame / 56/145TC Face
- Shaft Dimensions: 7/8" Diameter Keyed Shaft
- Rotation: Reversible with simple 2-lead connection
Product Features & Fitment
The motor features a removable bolt-on base and requires washers when reinstalling bolts if the base is removed to compensate for base thickness. It is compatible with Leeson speed controls 174307 and 174308. The design meets NEMA MG1 standards and includes Class H insulation for high voltage operation.
Cross Reference
- Marathon Z616, 145TEFR5327
Warranty
1 Year Manufacturer Warranty
