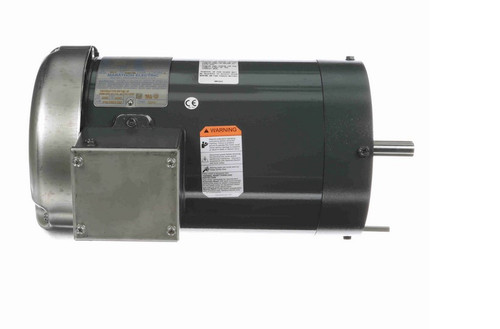

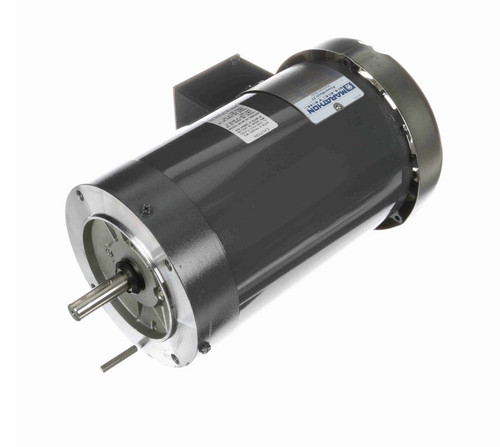

K609A Marathon 2 hp 1800 RPM 3-Phase 56C Frame TEFC (no base) 230/460V Marathon Motor

• 2 hp 1800 RPM, 5.8/2.9 amps 230/460 Volts 60hz. 3-Phase
• NEMA 56C frame, C-face, Keyed Stainless Steel Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.0, Overload protection = Auto
• No Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

Severe Duty wet environment/car wash motor having a C-face mount and requiring three phase power. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 056T17W99023
