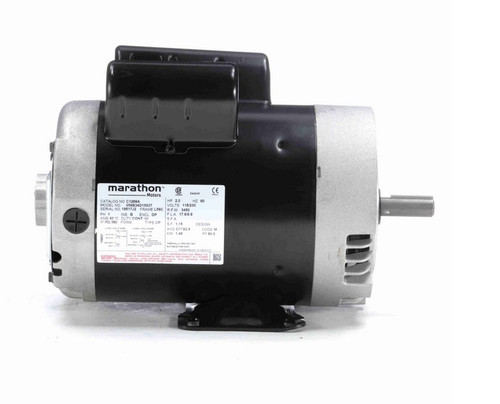

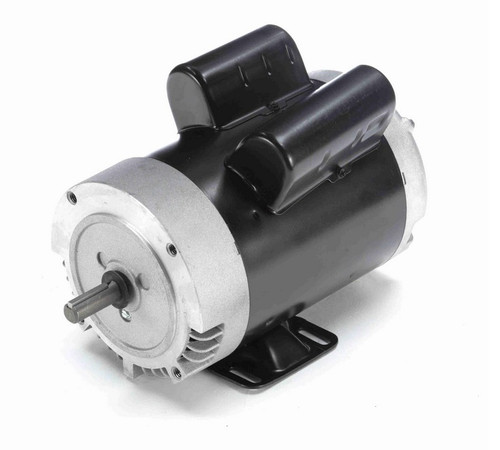

C1269A Marathon 2 hp 3600 RPM 56C Frame ODP (with base) 115/230V Marathon Electric Motor

Motor Discontinued

• 2 hp 3600 RPM, 17.8/8.9 amps 115/230 Volts 60hz. Capacitor Start - Capacitor Run Motor
• NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15, Overload protection = Manual
• Rigid Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof

Marathon # 056B34D15537
Replaces Leeson P6K34DK9B, 114215.00, M6K34DK27A, E114215.00, E114215, Century B860ES
