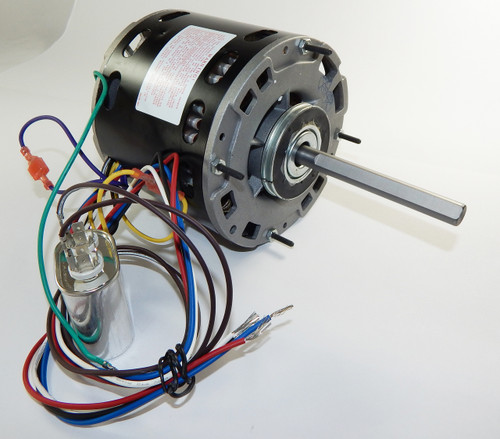

EM3467 | 3/4 hp 1075 RPM 4-Speed 48 Frame 208-230V Direct Drive Furnace Motor

EM3467 | 3/4 hp 1075 RPM 4-Speed 48 Frame 208-230V Direct Drive Furnace Motor

The EM3467 is a high-quality direct drive furnace blower motor designed as a popular direct replacement for many furnace brands. It is suitable for applications including furnace blowers, exhaust fans, and whole house fans.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 3.9 amps
• Frame / Diameter: 48 Frame / 5.6" Diameter
• Shaft Dimensions: 1/2" x 4 1/2"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a 4-speed design with a service factor of 1.0 and requires a 10 MFD 370V capacitor (not included). It has a motor body length of 4 13/16" and comes with 26" wire leads for easy connection. The motor is designed for continuous duty, air-over operation with a permanent split capacitor. It fits most "belly band" mounting applications, where the motor is secured via a strap or clamp around the motor body or mounted using thru-bolts. Compatible belly band brackets include the Torsion Flex Bracket (3-Prong #92-A8617, 4-Prong #FM554) and the Welded 3-Ring Bracket (#KIT317).

Cross Reference

• many different brand furnaces

Warranty

1 Year Manufacturer Warranty
