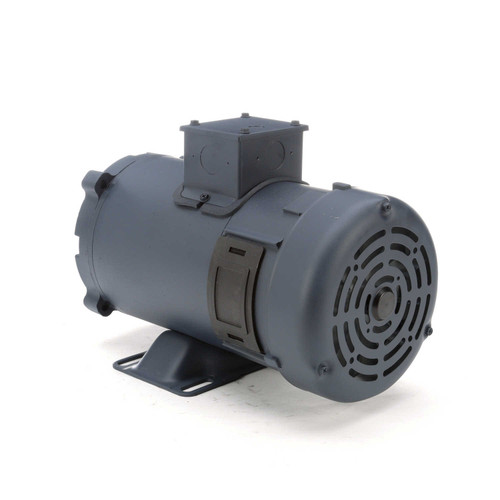

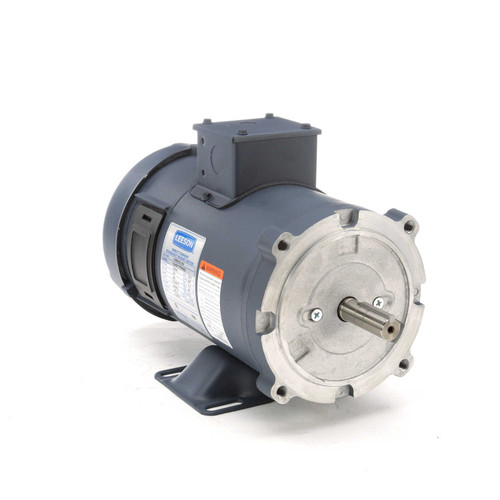

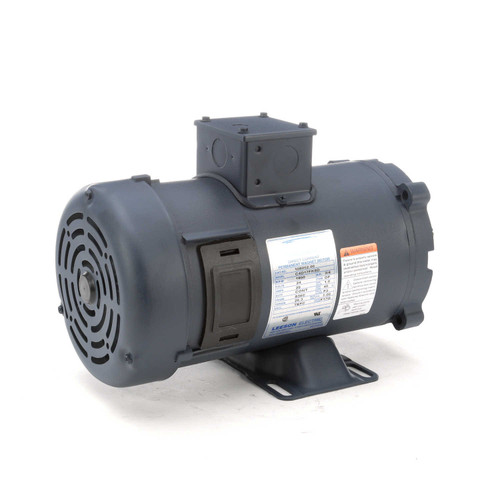

108052.00 Leeson | 3/4 hp 1800 RPM 56C Frame 24 volts DC TEFC

108052.00 Leeson | 3/4 hp 1800 RPM 56C Frame 24 Volts DC TEFC Motor

This 3/4 horsepower, 1800 RPM permanent magnet DC motor by Leeson is designed for low voltage applications such as battery or solar-powered systems. It serves as an exact replacement for the Dayton 6ML05 motor and is compatible with Leeson speed control model 175291.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 24 Volts DC
• Amperage: 29.0 Amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C
• Bearings: Sealed ball bearings

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base for flexible mounting options. Its low voltage permanent magnet design provides high starting torque suitable for heavy load applications, with linear speed and torque characteristics across the entire speed range. The motor supports dynamic braking for faster stops and offers reversible operation via a simple two-lead connection.

Cross Reference

• Dayton 6ML05 (The Dayton is actually made by Leeson Electric). Can use with Leeson speed control 175291
• C4D17FK8D, 108052.00

Warranty

1 Year Manufacturer Warranty
