108228.00 Leeson | 3/4 hp 1800 RPM 56C TENV Frame 90 volts DC Wash Down Duty
108228.00 Leeson | 3/4 hp 1800 RPM 56C TENV Frame 90 Volts DC Wash Down Duty Motor

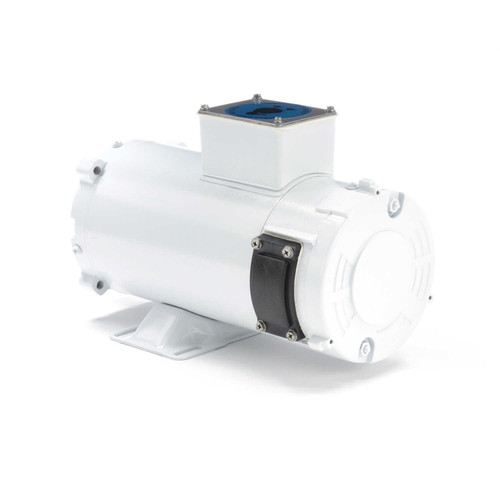

This Leeson 3/4 hp motor is designed for wash down duty applications, featuring a totally enclosed non-ventilated (TENV) design for enhanced moisture resistance. It is ideal for replacing or upgrading motors in environments requiring durability against moisture and contaminants.
Key Specifications
- Horsepower: 3/4 hp
- RPM: 1800
- Voltage: 90 Volts DC
- Amperage: 7.0 amps
- Enclosure: Totally Enclosed Non Ventilated (TENV)
- Frame / Diameter: NEMA 56C Frame

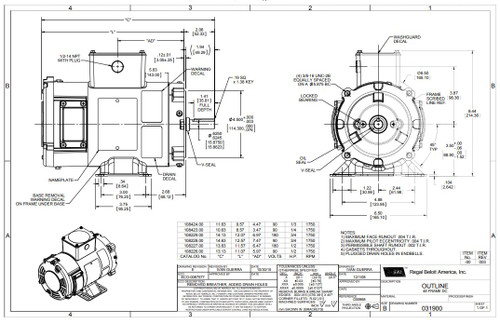

- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Product Features & Fitment
This Leeson Washguard motor includes a removable rigid base for flexible mounting options. It features a stainless steel shaft, conduit box cover, nameplate, and fan guard, along with special gaskets, slingers, and seals to enhance moisture protection. Four endshield drains and moisture-resistant interior components further improve durability in wash down environments. Compatible with Leeson speed controls models 174102, 174107, and 174307.
Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 90V |
| Horsepower | 3/4 HP |
| RPM | 1800 |
| Frame | 90 |
| Enclosure | TENV |
| Amperage | 7.0 Amps |
| Service Factor | 1.0 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
