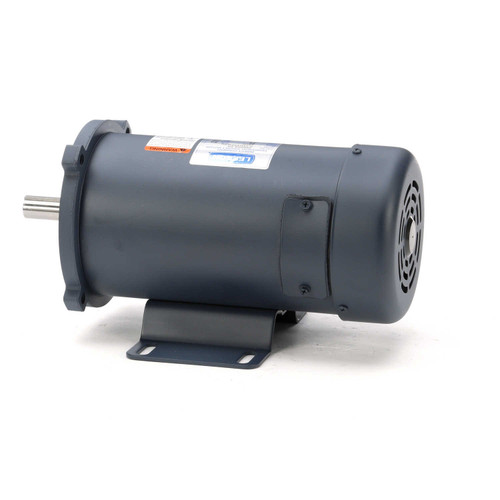

098009.00 Leeson | 3/4 hp 2500 RPM 90 Volts DC 56C Frame TEFC

098009.00 Leeson | 3/4 hp 2500 RPM 90 Volts DC 56C Frame TEFC

This Leeson 3/4 horsepower permanent magnet DC motor operates at 2500 RPM and 90 Volts DC. Designed for applications requiring adjustable speed and constant torque, it is ideal for use with SCR controllers and supports dynamic braking and reversible operation.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 2500
• Voltage: 90 Volts DC
• Amperage: 7.6 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter Keyed shaft
• Rotation: Reversible with simple 2-lead connection

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base. When removing the base, reinstall bolts with washers to compensate for base thickness. It is compatible with Leeson speed controls models 174307 and 174308. The motor meets NEMA MG1 standards and is UL and CSA listed.

Warranty

1 Year Manufacturer Warranty
