FD3CM2K18 Nidec | 3 hp 1800 RPM 184T Frame TEFC (Farm Duty) 230V

FD3CM2K18 Nidec | 3 hp 1800 RPM 184T Frame TEFC (Farm Duty) 230V

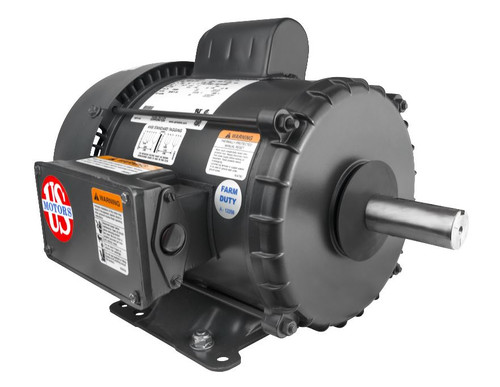

This Nidec FD3CM2K18 motor is a 3 horsepower, 1800 RPM agricultural motor designed for farm duty applications. It serves as a reliable replacement for equipment requiring a 230V, 60Hz power supply with a keyed shaft and TEFC enclosure.

Key Specifications

• Horsepower: 3 hp
• RPM: 1800
• Voltage: 230 V
• Amperage: 14.5 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

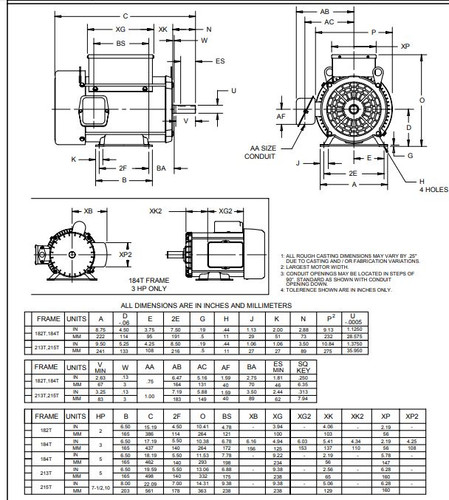

• Frame / Diameter: NEMA 184T
• Shaft Dimensions: 1 1/8" diameter x 2 3/4" length
• Rotation: Electrically reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a manual overload protection system and is rated for continuous duty at 40°C ambient temperature. It includes Class F insulation and is designed for easy installation in agricultural settings. The keyed shaft and NEMA 184T frame ensure compatibility with standard farm equipment mounts.

Warranty

1 Year Manufacturer Warranty
