121070.00 Leeson | 3 hp 2850 RPM 145T Frame TEFC Rigid Base 220V 50hz.
121070.00 Leeson | 3 hp 2850 RPM 145T Frame TEFC Rigid Base 220V 50hz.
121070.00 Leeson | 3 hp 2850 RPM 145T Frame TEFC Rigid Base 220V 50hz.
121070.00 Leeson | 3 hp 2850 RPM 145T Frame TEFC Rigid Base 220V 50hz.
121070.00 Leeson | 3 hp 2850 RPM 145T Frame TEFC Rigid Base 220V 50hz.
121070.00 Leeson | 3 hp 2850 RPM 145T Frame TEFC Rigid Base 220V 50hz.
121070.00 Leeson | 3 hp 2850 RPM 145T Frame TEFC Rigid Base 220V 50hz.
121070.00 Leeson | 3 hp 2850 RPM 145T Frame TEFC Rigid Base 220V 50hz.

Leeson

121070.00 Leeson | 3 hp 2850 RPM 145T Frame TEFC Rigid Base 220V 50hz.

(No reviews) Write a Review
$1,212.10
$1,026.95
SKU 121070
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 220V
Horsepower 3 HP
RPM 2850
Frame 145T
Enclosure TEFC
Hertz 50 Hz
Amperage 12.4 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3 hp 2850 RPM, 12.4 amps, 220V 50 hz. (will not operate @ 60hz)

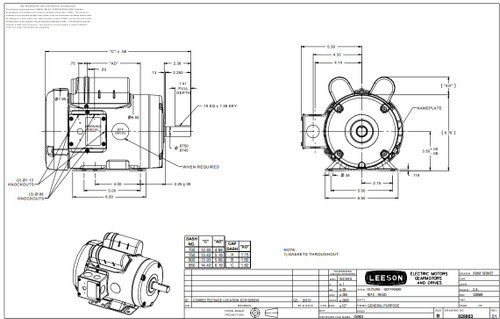

  • NEMA 145T Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.0 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • TEFC - Totally Enclosed Fan Cooled
  • 1 Year Manufacture Warranty

This motor is rated for 50 hz. Power systems and will not operate on 60 hz. Operation on 60 hz. Will damage the motor.

C145K28FB6E, 121070.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 220V
Horsepower 3 HP
RPM 2850
Frame 145T
Enclosure TEFC
Hertz 50 Hz
Amperage 12.4 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
