sale
Leeson

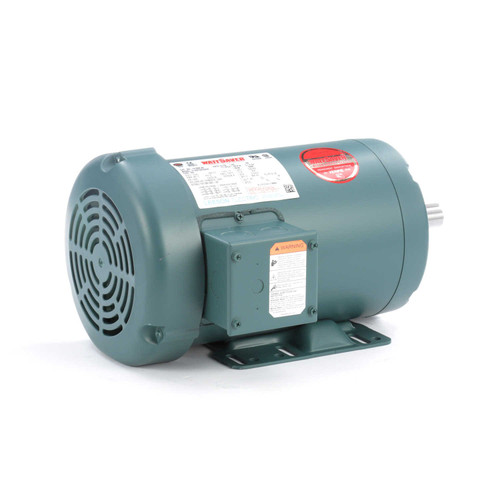

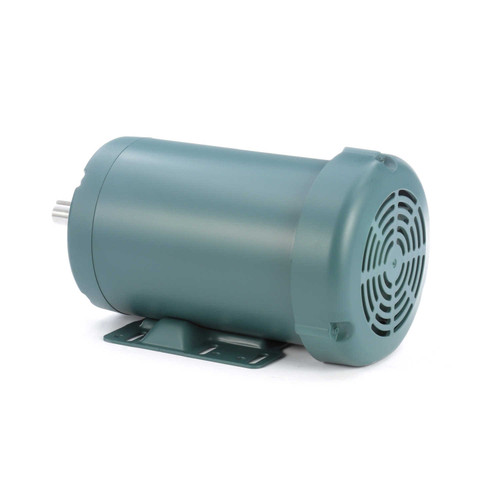

121968.00 Leeson | 3 hp 3450 RPM 145T Frame 208-230/460 Volts TEFC
(No reviews)
Write a Review
Write a Review
Leeson
121968.00 Leeson | 3 hp 3450 RPM 145T Frame 208-230/460 Volts TEFC
$991.30
$759.95
SKU
121968.00
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
3 HP
RPM
3450
Phase
Three Phase
Frame
145T
Enclosure
TEFC
Hertz
60 Hz
Amperage
8.0/4.0 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 3 hp 3450 RPM, 8.0/4.0 amps 230/460 Volts 60hz. Three Phase Motor
- NEMA 145T Frame Keyed Shaft 7/8" Diameter x 2 1/4"
- Service Factor: 1.15 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
Replaces 122026.00, G120185.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 3 HP |
| RPM | 3450 |
| Phase | Three Phase |
| Frame | 145T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 8.0/4.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
