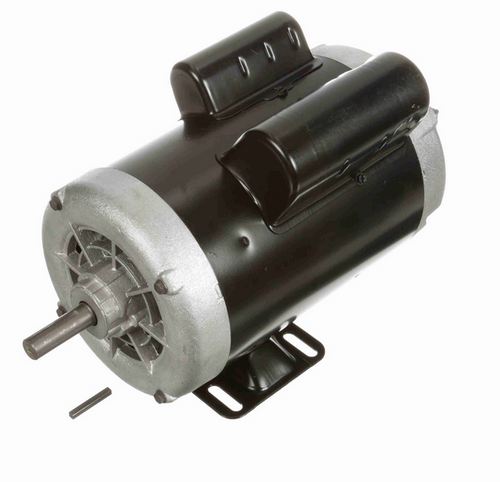

B735ES Century 3 hp 3600 RPM 1-Phase 56 Frame ODP (rigid base) 230V
B735ES Century 3 hp 3600 RPM 1-Phase 56 Frame ODP (rigid base) 230V
B735ES Century 3 hp 3600 RPM 1-Phase 56 Frame ODP (rigid base) 230V
B735ES Century 3 hp 3600 RPM 1-Phase 56 Frame ODP (rigid base) 230V
B735ES Century 3 hp 3600 RPM 1-Phase 56 Frame ODP (rigid base) 230V
B735ES Century 3 hp 3600 RPM 1-Phase 56 Frame ODP (rigid base) 230V
B735ES Century 3 hp 3600 RPM 1-Phase 56 Frame ODP (rigid base) 230V
B735ES Century 3 hp 3600 RPM 1-Phase 56 Frame ODP (rigid base) 230V

Century Electric Motor

B735ES Century 3 hp 3600 RPM 1-Phase 56 Frame ODP (rigid base) 230V

(No reviews) Write a Review
$1,303.76
$1,104.92
SKU B735ES
UPC 7.87E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 3 HP
RPM 3600
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 11.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3 hp 3600 RPM, 11.6 amps 230 Volts 60hz. Single Phase, Capacitor Start/Run
  • NEMA 56 frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a single phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip Proof. B735ES

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 3 HP
RPM 3600
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 11.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
