Leeson

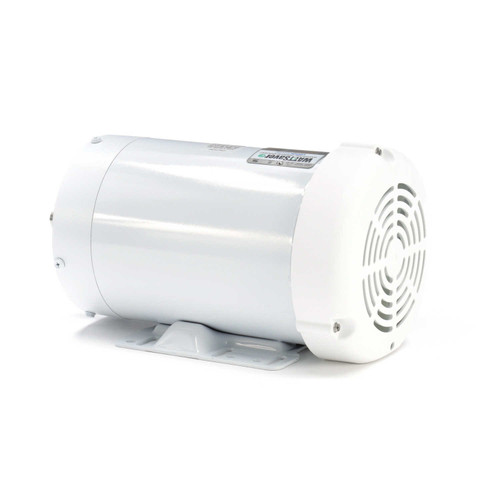

121870.00 Leeson | 3 hp 3600 RPM 145TC Frame TEFC 230/460V Wash Down Duty
Write a Review
Leeson
121870.00 Leeson | 3 hp 3600 RPM 145TC Frame TEFC 230/460V Wash Down Duty
121870.00 Leeson | 3 hp 3600 RPM 145TC Frame TEFC 230/460V Wash Down Duty
This Leeson 3 hp, 3600 RPM three-phase motor is designed for wash down duty applications, offering durability and moisture resistance. It replaces model G120911.00 and features a rugged construction suitable for demanding industrial environments.
Key Specifications
- Horsepower: 3 hp
- RPM: 3600
- Voltage: 230/460 V
- Amperage: 8.0/4.0 A
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Frame / Diameter: NEMA 145TC
- Shaft Dimensions: 7/8" Diameter x 2 1/4" Length
Product Features & Fitment
This Leeson Washguard motor features a rigid base for secure mounting and is coated with durable Rust-Oleum white epoxy paint for corrosion resistance. It includes a stainless steel shaft, conduit box cover, nameplate, and fan guard, along with special gaskets, slingers, seals, and four endshield drains to enhance moisture shedding. The motor’s interior components are moisture resistant and utilize the IRIS insulation system for improved reliability in wash down environments.
Cross Reference
- G120911.00
Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 3 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 145TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 8.0/4.0 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
- G120911.00
