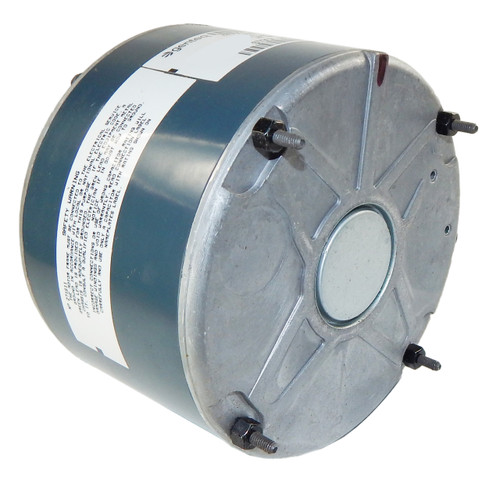

3S003 | Carrier Condenser Motor HC37GE210, 1/5 hp, 825 RPM, 208-230V Genteq

3S003 | Carrier Condenser Motor HC37GE210, 1/5 hp, 825 RPM, 208-230V Genteq

This Carrier replacement condenser motor is designed as a direct aftermarket substitute for the HC37GE210 model. Manufactured by Genteq (Model 5KCP39GFY917S), it is suitable for HVAC condenser applications requiring reliable, single-speed operation.

Key Specifications

• Horsepower: 1/5 hp
• RPM: 825
• Voltage: 208-230 V
• Amperage: 0.95 A
• Enclosure: TEAO (Totally Enclosed Air Over)
• Frame / Diameter: 5-5/8" body diameter
• Shaft Dimensions: 1/2" diameter x 1.5" length
• Rotation: Counterclockwise (CCW) shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

This motor requires a 7.5/370 VAC capacitor for proper operation; replacement of the run capacitor is recommended during installation. It features a 1-speed design with a 40° ambient temperature rating and comes with 38" leads for easy wiring. The mounting stud pattern measures 5-1/4" x 5-1/4", and the motor case length is 4-1/2". Suggested replacement references include GE 5KCP39GFY917S, 5KCP39GFS166S, Carrier HC37GE210, and Dayton 6DLL2.

Cross Reference

• GE 5KCP39GFY917S, 5KCP39GFS166S
• Carrier HC37GE210
• Dayton 6DLL2

Warranty

1 Year Manufacturer Warranty
