120998.00 Leeson 4 hp 3450 RPM Delta Unisaw Electric Motor 230 Volts

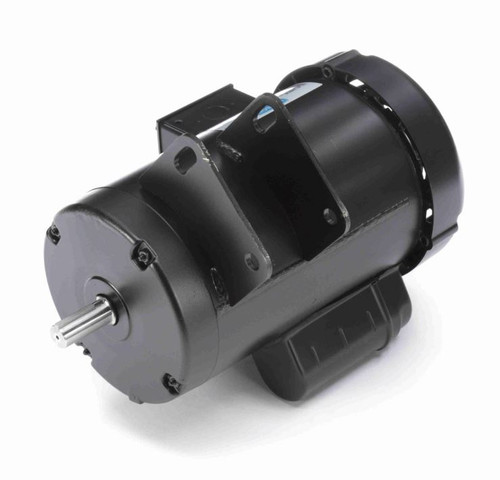

This Leeson electric motor is a direct replacement for Delta Unisaw models, designed for heavy-duty woodworking applications. It delivers reliable 4 horsepower performance at 3450 RPM with a 230V single-phase power supply.

Key Specifications

• Horsepower: 4 hp
• RPM: 3450
• Voltage: 230 V
• Amperage: 17.6 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: 145Y Frame
• Shaft Dimensions: 3/4" Diameter x 1-3/4" Length
• Rotation: Electrically Reversible
• Bearings: Ball Bearings

Product Features & Fitment

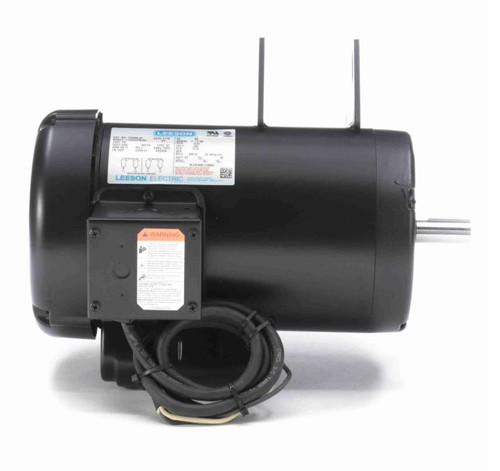

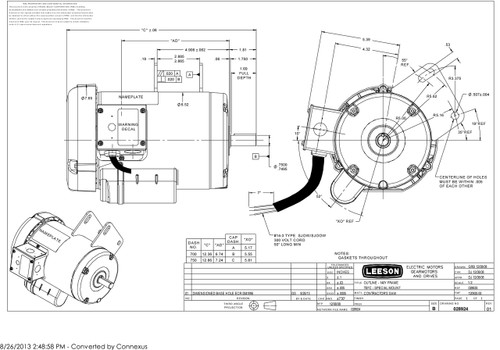

The motor includes a 54-inch electric cord and features a specialty mounting bracket that allows the motor to pivot on a rod for belt tensioning. Verify the bracket orientation with the dimensional diagram to ensure compatibility with right or left tilt saws. The motor is capacitor start/capacitor run for reduced amperage and provides extra high breakdown torque for maximum cutting power. Wiring instructions are provided on the motor nameplate; confirm motor connections before installation.
