PEMS

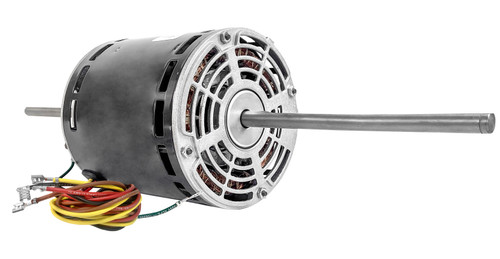

40046 Marvair Replacement Fan Motor 3/4 HP, 230V, 1120 RPM - 2 Speed
(No reviews)
Write a Review
Write a Review
PEMS
40046 Marvair Replacement Fan Motor 3/4 HP, 230V, 1120 RPM - 2 Speed
$300.00
$279.95
SKU
40046
Availability
IN STOCK
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
230V
Horsepower
3/4 HP
RPM
1120
Frame
48Y
Hertz
50/60 Hz
Amperage
4 Amps
Bearings
Sleeve Bearings
Speeds
2-Speed
Rotation
Counter-Clockwise
40046 Marvair Replacement Fan Motor 3/4 HP, 230V, 1120 RPM - 2 Speed
This Marvair replacement fan motor is a direct OEM aftermarket substitute designed for Marvair model 40046 and compatible units. It is engineered for HVAC applications requiring reliable dual-speed operation and efficient performance.
Key Specifications
- Horsepower: 3/4 HP
- RPM: 1120 (2 Speed)
- Voltage: 230V
- Amperage: 4 Amps
- Enclosure: Open
- Frame / Diameter: 48Y frame
- Shaft Dimensions: Dual shaft 7.5" x 1/2" x 7.5"
- Rotation: CCW Lead End
- Bearings: Sleeve bearing
Product Features & Fitment
This motor features an auto overload protector and is designed for belly band mounting. Installation requires a 10 MFD 370V capacitor (sold separately, part #10DV). It is a direct replacement for Marvair part numbers 40046, F48H82B81, 71265028, 7126-5028, and P40046.
Cross Reference
- Marvair 40046, F48H82B81, 71265028, 7126-5028, P40046
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 230V |
| Horsepower | 3/4 HP |
| RPM | 1120 |
| Frame | 48Y |
| Hertz | 50/60 Hz |
| Amperage | 4 Amps |
| Bearings | Sleeve Bearings |
| Speeds | 2-Speed |
| Rotation | Counter-Clockwise |
- Marvair 40046, F48H82B81, 71265028, 7126-5028, P40046
