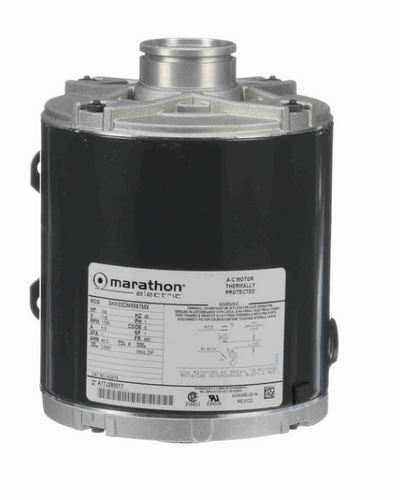

4725 Marathon 1/4 hp Carbonator Pump Motor 1800/1500 RPM 115V, 48Y ODP Frame (resilient base) Marathon

4725 Marathon 1/4 hp Carbonator Pump Motor 1800/1500 RPM 115V, 48Y ODP Frame (Resilient Base)

This Marathon 1/4 hp carbonator pump motor is a direct replacement designed for liquid transfer pumps, vending machine pumps, and other hub-mounted pump applications. It features a specialized shaft and mounting configuration to ensure compatibility with carbonator pumps.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800 / 1500
• Voltage: 115 V
• Amperage: 5.0 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Y
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a resilient base for stable mounting and features a short, slotted shaft for close-coupling to the carbonator pump. An extended hub allows for direct mounting, ensuring a secure and precise fit. It is equipped with Class B insulation and automatic overload protection for reliable operation.

Warranty

1 Year Manufacturer Warranty
